Multichannel-4061

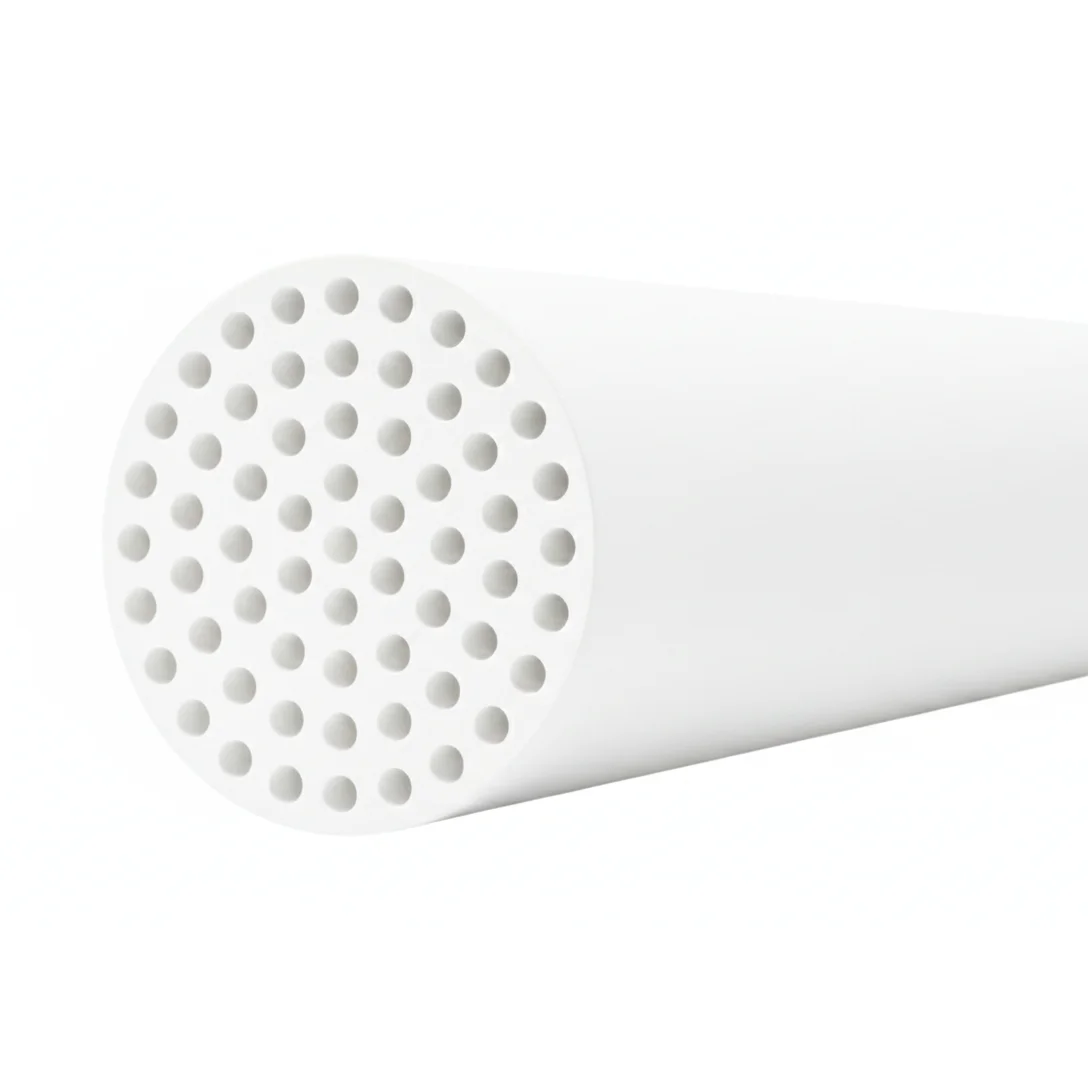

The NPC-M-4061 Multichannel Ceramic Membrane by Nano Palayesh Ceram (NPC) is engineered for industrial-scale filtration processes requiring high surface area and enhanced channel density. With a 40 mm outer diameter and 61 circular channels, this membrane delivers approximately 0.575 m² of effective filtration area within a robust ceramic structure.
Featuring a 2.5 mm channel inner diameter, the NPC-M-4061 is optimized for balanced flow dynamics and reduced fouling tendency. Manufactured from advanced ceramic materials such as Silicon Carbide, Zirconia, Alumina, Titania, Silica, and Mullite, it provides exceptional resistance to aggressive chemicals, extreme temperatures up to 300°C, and demanding cleaning cycles.
Its inside-out filtration mode combined with axial feed flow ensures stable permeation, high efficiency, and long operational lifetime in microfiltration, ultrafiltration and nanofiltration applications.
- Multichannel ceramic membrane with inside-out filtration mode
- 40 mm outer diameter configuration
- High channel density (61 circular channels)
- 2.5 mm channel inner diameter optimized for reduced fouling
- High effective filtration surface area (~0.575 m²)
- Axial feed flow path for rapid permeation
- Support materials: SiC, Zirconia, Alumina, Titania, Silica, Mullite
- Compatible with MF, UF and NF separation layers
- Excellent chemical, thermal, and mechanical resistance
- CIP and backflush compatible
- Modular design for scalable system integration
- Model Code: NPC-M-4061
- Membrane Type: Multichannel Ceramic
- Filtration Mode: Inside-out (feed in channels)
- Outer Diameter (O.D): 40 mm
- Channel Count: 61 (circular cross-section)
- Channel Inner Diameter: 2.5 mm
- Membrane Length: Up to 1200 mm
- Filtration Surface Area: ~0.575 m²
- Flow Path: Axial feed, rapid permeation
- Max. Operating Pressure: Up to 10 bar (material/module-dependent)
- Operating Temperature: Up to 300 °C (material/module-dependent)
- pH Range: 0 – 14
- Porosity: 45 ± 5%
- Separation Layer Options:
- MF – 3 µm: ~2200–2500 LMH/bar
- MF – 1 µm: ~1800–2200 LMH/bar
- MF – 200 nm: ~1200–1600 LMH/bar
- MF/UF – 100 nm: ~800–1200 LMH/bar
- UF – 50 nm: ~400–800 LMH/bar
- UF – 20 nm: ~200–400 LMH/bar
- Food & Beverage: Clarification, microbial control, protein recovery
- Pharmaceutical & Biotech: Cell broth filtration, enzyme separation
- Petrochemical: Oil–water separation, catalyst recovery
- Water & Wastewater Treatment: MBR polishing, RO pretreatment
The NPC-M-4061 is designed for high-capacity industrial operations where surface area, channel density, and long-term stability are critical. Its 61-channel architecture combined with optimized 2.5 mm flow channels enhances throughput while minimizing fouling risk. With superior resistance to chemicals, temperature, and mechanical stress, along with full compatibility with CIP and backflush procedures, this membrane ensures reliable, long service performance in continuous and large-scale filtration systems.
